In the ever-evolving field of electrical contracting, ensuring the safety, efficiency, and reliability of installations is paramount. One of the most critical aspects to consider during the design and implementation of electrical circuits is voltage drop. Excessive voltage drop can lead to a variety of complications, from inefficient operation of equipment to potential hazards. This practical guide provides an in-depth understanding of voltage drop calculation methods, complete with examples, to empower electrical contractors in delivering superior service to clients.
What is Voltage Drop?
Voltage drop refers to the reduction in voltage as electrical current travels through the conductors of a circuit. As current flows from the source to the load, resistance within the wire causes some energy to dissipate as heat, resulting in a lower voltage at the load compared to the source. If the voltage drop is too high, electrical equipment may not operate correctly or safely.
Key effects of excessive voltage drop include:
- Reduced efficiency and performance of electrical devices
- Overheating of conductors and insulation
- Potential damage to sensitive equipment
- Violation of electrical codes and standards
Voltage Drop Standards and Codes
Most electrical codes, such as the National Electrical Code (NEC) in the United States, specify recommended limits to ensure system efficiency and safety. For branch circuits and feeders, the NEC advises that voltage drop should not exceed 3%, while the combined voltage drop from the service entrance to the most distant outlet should stay below 5%. These guidelines are not arbitrary; adhering to them prevents overheating of conductors, reduces the risk of equipment malfunction or failure, and helps maintain the life expectancy of electrical devices.
Failure to comply with these standards may result in violations during inspections, increased energy losses, and the possibility of nuisance tripping, especially with sensitive electronics or motors that require stable voltage. By calculating voltage drop during the design phase, contractors can choose appropriate conductor sizes and materials, plan efficient circuit layouts, and ultimately deliver installations that are both code-compliant and reliable. This proactive approach also demonstrates professionalism and a commitment to quality that clients will value.
Factors Affecting Voltage Drop
Several variables influence the magnitude of voltage drop in an electrical circuit:
- Conductor Size: Larger conductors have lower resistance, resulting in less voltage drop.
- Conductor Material: Copper and aluminum are the most common. Copper has lower resistance than aluminum.
- Length of Run: The longer the wire, the greater the resistance and voltage drop.
- Current: Higher currents increase the voltage drop.
- Temperature: Elevated temperatures can increase resistance in conductors.
- Type of Load: Whether the load is linear or non-linear, and whether it is single-phase or three-phase.
Voltage Drop Calculation Method
The basic formula for calculating voltage drop in a conductor is:
Single-phase circuit:
Voltage Drop (V) = 2 × K × I × L ÷ CM
Three-phase circuit:
Voltage Drop (V) = 1.732 × K × I × L ÷ CM
Where:
- K = Resistivity constant of the conductor (copper: 12.9, aluminum: 21.2, units: ohm-cmil/ft)
- I = Current in amperes (A)
- L = Length of run in feet (ft)
- CM = Cross-sectional area of conductor in circular mils (cmil)
- 1.732 = Square root of 3 for three-phase circuits
Alternatively, for metric units and common installations, a simplified formula is:
Single-phase (metric):
Voltage Drop (V) = (2 × I × L × R) ÷ 1000
Three-phase (metric):
Voltage Drop (V) = (√3 × I × L × R) ÷ 1000
Where:
- I = Current (A)
- L = Length (m)
- R = Resistance per unit length (Ω/km)
Step-by-Step Voltage Drop Calculation
Step 1: Determine the load current (amperes)
Step 2: Identify the total length of the circuit run
Step 3: Select the conductor size and material
Step 4: Find the resistance of the conductor
Step 5: Apply the appropriate formula based on circuit type
Step 6: Compare the calculated voltage drop to code requirements
Example 1: Single-Phase Circuit (Imperial Units)
Scenario:
An electrical contractor needs to supply a load of 20A to a device located 150 feet away using copper wire. The wire size selected is #8 AWG, which has a cross-sectional area of 16,510 cmil.
Given:
- Current (I): 20A
- Length (L): 150 ft
- Conductor size (CM): 16,510 cmil (#8 AWG)
- Resistivity constant (K): 12.9 (copper)
Calculation:
Voltage Drop (V) = 2 × K × I × L ÷ CM
= 2 × 12.9 × 20 × 150 ÷ 16,510
= 2 × 12.9 × 3,000 ÷ 16,510
= 2 × 38,700 ÷ 16,510
= 77,400 ÷ 16,510
= 4.69V
Assuming a supply voltage of 120V, the percentage voltage drop is:
(4.69V ÷ 120V) × 100 = 3.9%
Conclusion:
The voltage drop of 3.9% slightly exceeds the recommended maximum of 3%. To comply, the conductor size should be increased to reduce the drop.
Example 2: Three-Phase Circuit (Metric Units)
Scenario:
A contractor installs a three-phase motor with a load of 30A, 100 meters from the panel, using copper cable with a resistance of 0.153 Ω/km.
Given:
- Current (I): 30A
- Length (L): 100 m
- Resistance (R): 0.153 Ω/km
Calculation:
Voltage Drop (V) = (√3 × I × L × R) ÷ 1000
= (1.732 × 30 × 100 × 0.153) ÷ 1000
= (1.732 × 30 × 15.3) ÷ 1000
= (1.732 × 459) ÷ 1000
= 795.588 ÷ 1000
= 0.796V
Assuming a supply voltage of 400V, the percentage voltage drop is:
(0.796V ÷ 400V) × 100 = 0.199%
Conclusion:
The voltage drop is well within the acceptable limit.
Choosing the Right Conductor Size
When the calculated voltage drop exceeds code requirements, contractors have several options:
- Increase the conductor size to lower resistance
- Reduce length of run by relocating loads
- Use conductors with higher conductivity (e.g., copper)
- Consider parallel conductors for very long or high-current runs

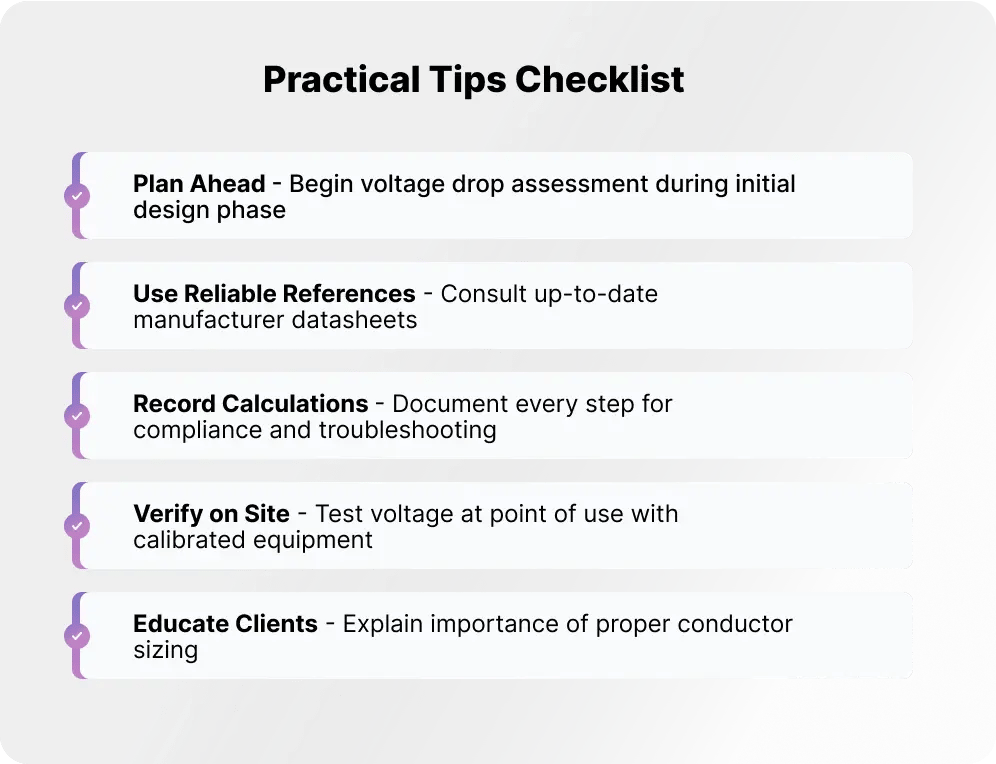

Practical Tips for Electrical Contractors
- Plan Ahead: Begin your voltage drop assessment during the initial design phase rather than waiting until installation. This foresight enables you to select optimal conductor sizes, anticipate longer wire runs, and identify potential compliance issues early—saving time and money during construction. Consider all critical loads and expansion possibilities when mapping out circuits.
- Use Reliable References: Always consult up-to-date manufacturer datasheets for exact conductor specifications, including resistance values and ampacity ratings. Cross-reference these with the National Electrical Code (NEC) tables and local codes, which may specify minimum sizes or voltage drop limits. This ensures your installations meet both performance and regulatory requirements.
- Record Calculations: Systematically document every step of your voltage drop calculations, noting wire sizes, lengths, ambient temperature corrections, and load types. Maintaining detailed records for each project not only facilitates inspection and code compliance but also streamlines troubleshooting and future upgrades. These records can serve as invaluable evidence if disputes arise or modifications are needed.
- Verify on Site: After installation, test the voltage at the point of use using a calibrated multimeter or voltage analyzer, especially for circuits serving sensitive electronics or motors. Compare measured values to your calculated expectations and code requirements. If discrepancies are found, investigate contributing factors such as unexpected load changes, poor connections, or environmental conditions.
- Educate Clients: Take time to explain to clients why proper conductor sizing and voltage drop management are vital for system reliability and energy efficiency. Help them understand how undervalued voltage drop can lead to increased operating costs, equipment malfunctions, or safety hazards. Providing clear information builds trust and encourages clients to make informed decisions about upgrades or maintenance.
Advanced Considerations
Some situations require more nuanced calculations:
- Non-linear Loads: Devices like computers, LED lighting, and variable frequency drives can distort current and affect voltage drop calculations.
- Temperature Correction: Real-world conductor resistance may increase at higher ambient temperatures. Apply correction factors if needed.
- Conduit Fill: Multiple wires in a conduit can impact overall resistance and heat dissipation.
The Importance of Accurate Voltage Drop Calculations in Design and Estimating
In both the design phase and the estimating stage, precise voltage drop calculations are crucial to ensuring the integrity and safety of electrical systems. Overlooking voltage drop not only risks inefficient operation and equipment damage but can also lead to budget overruns and compliance failures. Accurate assessments allow contractors to specify the right conductor sizes, anticipate material costs, and ensure code compliance from the outset, minimizing costly revisions and delays.
Drawer AI is an invaluable ally in this process, offering robust protection against costly mistakes and uncertainty. Drawer AI dramatically reduces the risk of human error. Its intuitive interface enables users to evaluate different scenarios quickly, catch potential problems before installation, and ensure every design meets stringent code requirements. This streamlined approach not only saves time but also shields contractors and clients from the financial and safety risks associated with faulty wiring or code violations.
With Drawer AI, contractors are empowered to present accurate, confident bids, and clients gain peace of mind knowing their projects are backed by advanced technology that safeguards their investment. By leveraging Drawer AI, you stay ahead of code changes, avoid unnecessary oversizing, and maintain a reputation for reliable, high-quality electrical work—all while protecting yourself and your clients from preventable issues and costly rework.
Conclusion
Voltage drop calculation is an essential skill for electrical contractors, ensuring installations operate safely and efficiently. By understanding the impact of conductor size, material, and run length, and by using the correct formulas, contractors can confidently select suitable wiring and safeguard their projects against avoidable issues. This guide provides a practical foundation; for complex designs, always consult relevant standards and seek expert advice.
- Remember: Always strive for a voltage drop below 3% on branch circuits and feeders.
- When in doubt, choose the next larger wire size.
- Keep abreast of code changes and technological advances in wiring materials.
